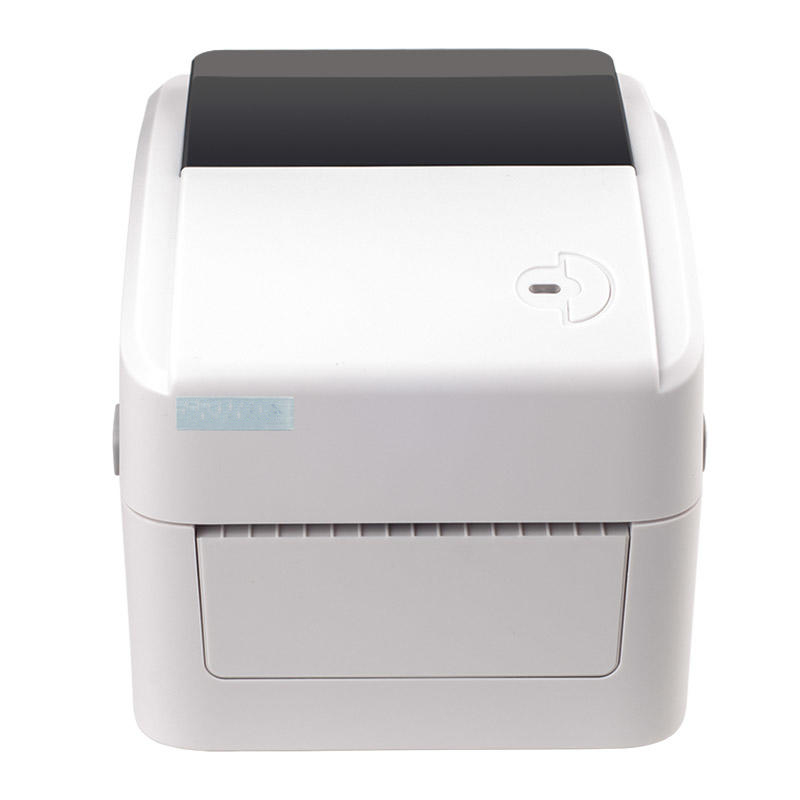

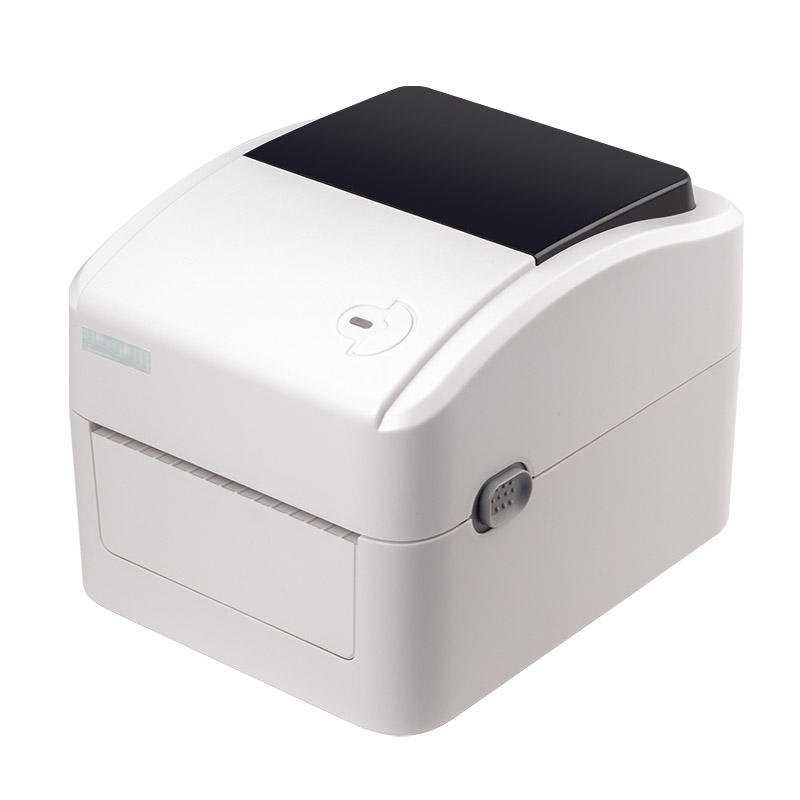

This thermal high speed label printer designed with elegant appearance of shell, which have a compact and space-saving body but keep a large paper container. One multi-functional button and one two-color indicator, simple to operate.

Features:

1. Head-up sensor, Gap sensor, Black sensor.
2. USB/WiFi/Bluetooth/LAN interfaces (optional)
3. Faster printing speed, 6 inches 152mm/s, to improve the daily efficiency.
4. 8MB SDRAM&8MB Flash memory.
5. Rich emulation language compatibility: TSPL, ZPL, EPL, DPL.
6. 203 dpi resolution.

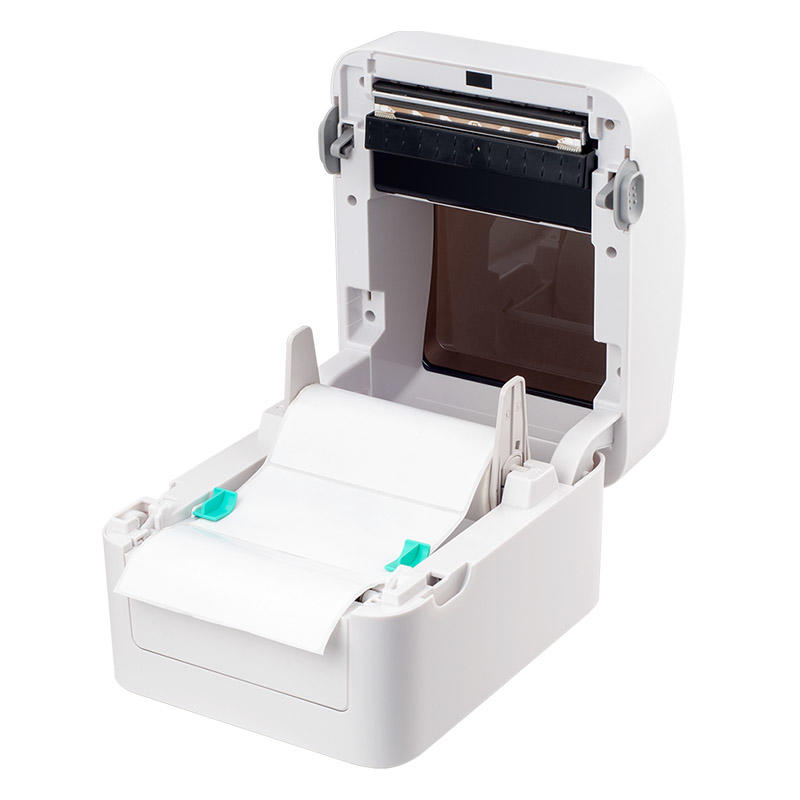

7. High quality double-walled clamshell design.

Specifications:

Print method: Direct Thermal

Resolution: 203 DPI

Max. print width: 108 mm ( 4.25 ‘’)

Max. print length: 1778 mm (70 ”)

Print speed: 152 mm(6‘’)/s Max.

Media:

1. Media width: 25.4 mm ~ 115 mm
2. Media type: Black mark, Continuous, gap, black mark, fan-fold and punched hole
3. Media core diameter: 25.4 ~ 76.2 mm ( 1 ” ~ 3”)
4. Label length: 10 ~ 1778 mm ( 0.39” ~ 70”)
5. Media thickness: 0.06 ~ 0.254 mm (2.36 ~ 10 mil)

Performance Features:

1. Memory: 8 MB Flash Memory/ 8 MB SDRAM/ Flash memory can be expanded Max. 4 Gb
2. Processor: 32-bit CPU
3. Sensors: Gap sensor Cover opening sensor Black mark sensor
4. Interface: Standard version: USB Optional: Lan / WIFI/ Bluetooth / TF card

Fonts/Graphics/Symbologies:

1. 1D barcode: Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128,
   UPC-A, UPC-E, EAN and UPC2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11
   2D barcode: PDF-417, Maxicode, DataMatrix, QR code, Aztec
2. Internal fonts: 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software
3. Emulation: TSPL、EPL、ZPL、DPL
4. Rotation: 0 °、90 °、180 °、270°

Software:

1. SDK: Windows/ iOS / Android
2. Driver: Windows/Linux/ Mac

Power supply:

1. Output: DC24V 2.5A
2. Input: AC 110-240 V

Environmental Conditions:

1. Storage environment: -40 ~60℃ （-40~140℉), Humidity: 10 ~ 90% non-condensing
2. Operation: 5 ~40℃ （41~104℉), Humidity: 25 ~ 85% non-condensing

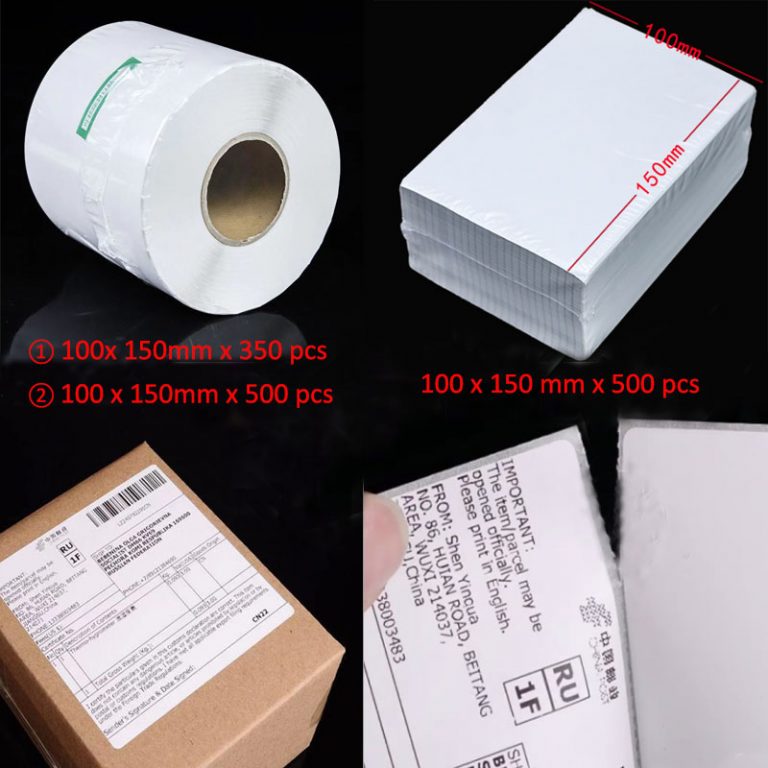

This Xprinter XP-420B Shipping label themal printer is available for A6 size(100mmx150mm) waybill print.
