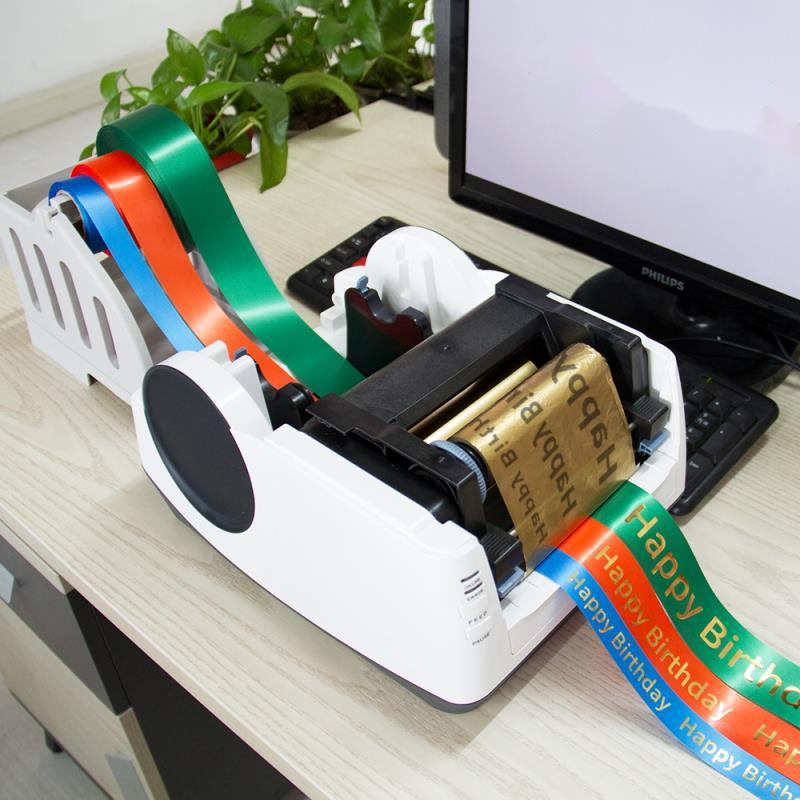

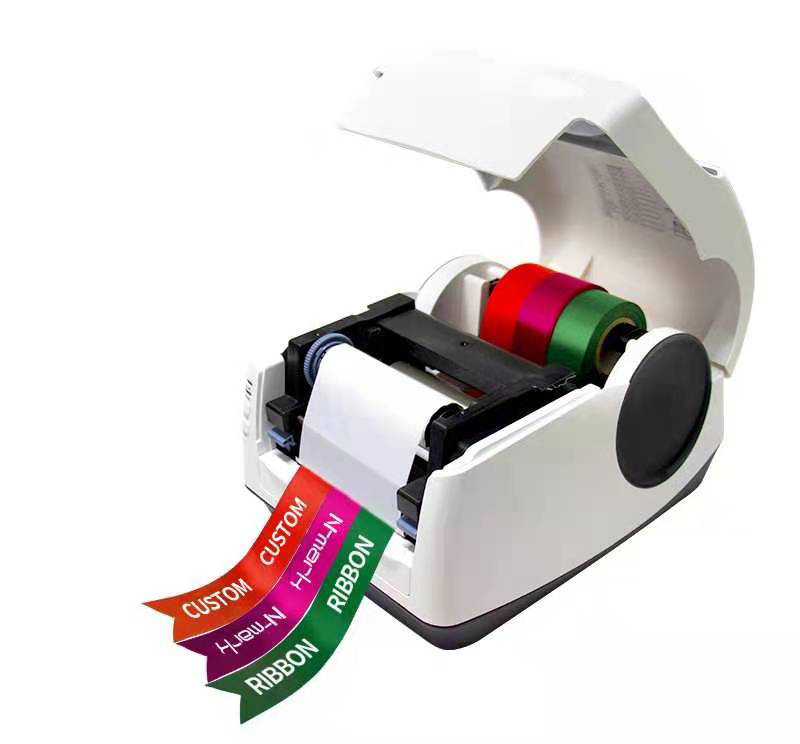

D4022 Satin ribbon printer
Features:
- Customized ribbon printer, instead of printing, beautiful ribbon, easy to get!
- A wide range of printing materials, printing quickly, small and exquisite.
- Application: Flower Ribbon, gift packaging ribbon, ceremonial ribbon, funeral ribbon.
Specifications:
- Model: D4022
- Print width: not more than 104mm
- Media width: 15-115 mm
- Print length: 10-6000mm
- Max roll outer diameter: 125mm
- Media sensor: Transmittance sensor
- Operational temperature: 5℃ – 50 ℃
- Operational humidity: 25% ~ 85% RH (non-condensing)
- Storage temperature: -20℃ – 60 ℃
- Storage humidity: 10% – 90% RH (non-condensing)
- Resolution ratio: 203 dpi
- Font: Nmark0, Nmark1, Nmark2, Nmark3, Nmark4, Nmark5, 宋体,黑体, Times Roman, Arial
- CPU: 32-bit CPU
- Print speed: 5 inch/s
- Dimensions/ Item weight: 310mm(L) x 235mm (W) x 204mm (H) / 2.7 KG
- Programming language: NPL compatible with TPCL and TSPL
- Storage: RAM: 16M ROM: 16M
- Operational mode: batch/ label
- Print head: flat-pressed
- Print mode: direct thermal tto
- Connection: USB、Network、Serial
- TDcode type: QR code, DataMatrix, PDF417 Maxicode, MicroPDF417
- Attachment: USB、DC adapter、Instruction
