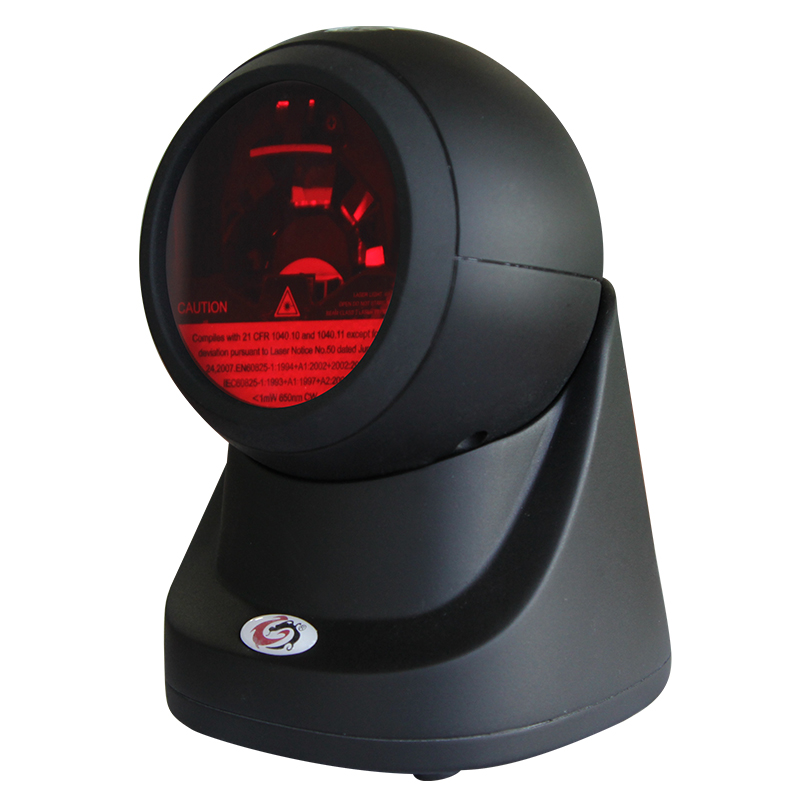

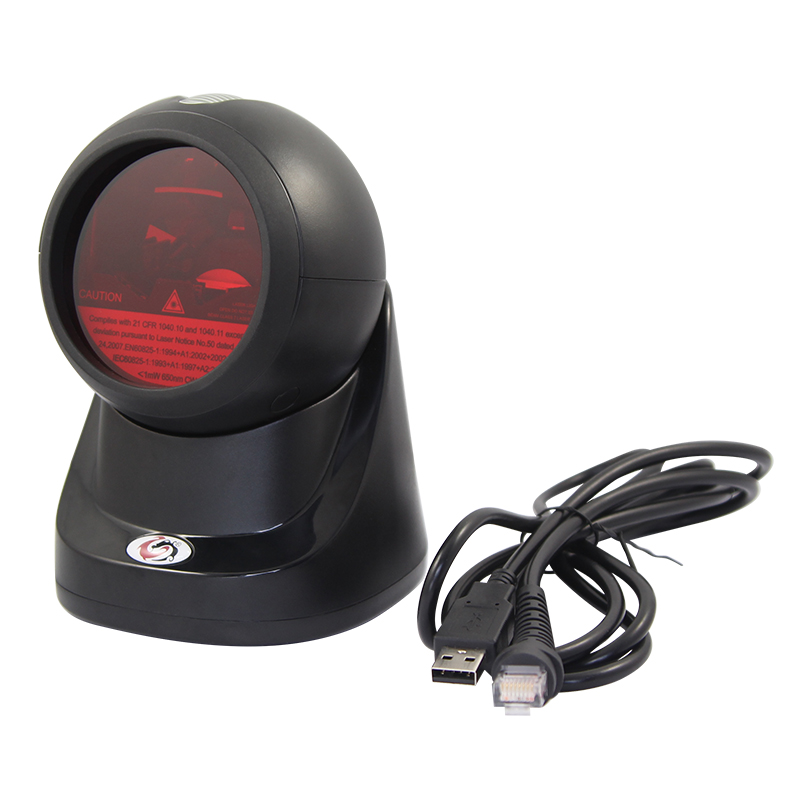

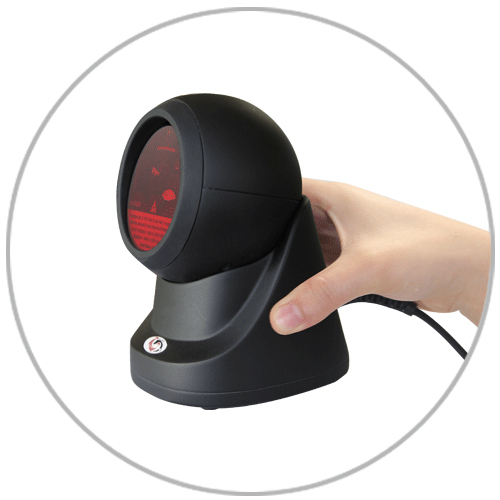

SUNLUX Omni-directional Barcode Scanner XL-2002

Source: Kunshan TES Electronic Technology Co., Ltd.2021-06-25

Features
※Two years warranty
※With CE certificate
※ Firmware can be upgraded online
※ Suit for USB, RS-232, USB-VCP interface port.
※Suitable for supermarkets, pharmacies, retail stores
※ Powerful performance on decode capability, can read GS1 code.

Specifications:
※ Light Source: Visible Laser Diode 650nm
※ Scan Pattern: 20 lines 5 fields of 4 parallel lines
※ Scan speed: 1500 scans/s
※Print Contrast: 30% @UPC/EAN 100%
※Minimum Resolution: 4 mil
※Depth of Field: 0-220mm for 0.33 mm UPC/EAN 100%
※ Host System Interfaces: USB, RS232, USB-VCP
※ Visual Indicators: Two color LED ( blue& red)

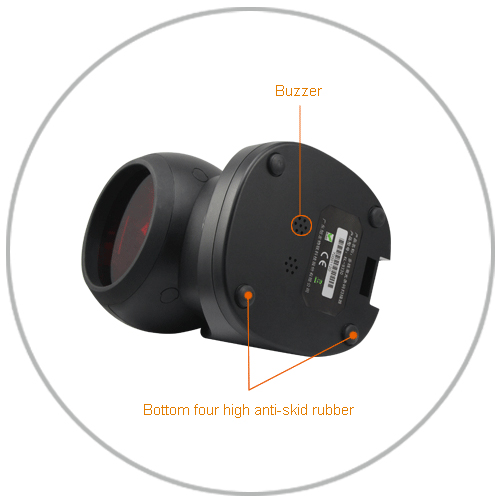

※ Beepers Operation: Programmable tone & volume

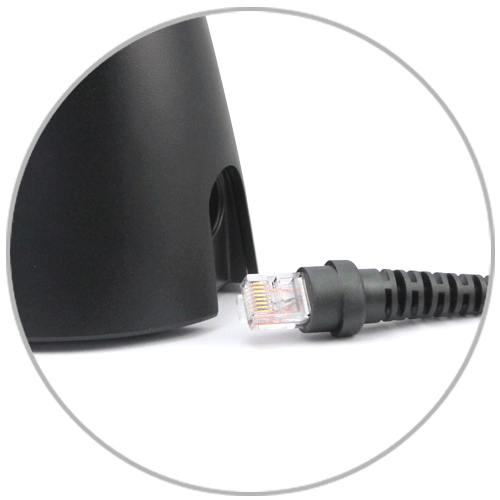

※ Cable: Standard 2M straight
※ Decoding Capacity: UPC/EAN/JAN, UPC-A&UPC-E, EAN-8&EAN-13, JAN-8 & JAN-13,ISBN/ISSN,Code 39 (with full ASCII), Codabar ( NW7), Code 128&EAN128, Code 93, Interleaved 2 of 5(ITF), Addendum 2 of 5, MSI/Plessy, Code32(Italian Pharmacode), RSS 14,RSS Limited, RSS Expanded, Industry 2 of 5, Standard 2 of 5.
※ Size: L x W x H: 100mm x 100mm x 149mm
※ Weight: 314 g
※ Material: ABS + PC
※ Laser Class: Meet the Grade I National Criteria for Laser Safety.
※ Voltage: 5 Volts
※ Static Current: 250mA
※ EMC: CE DOC compliance
※ Operating Temperature: -0℃ to 45 ℃
※ Storage Temperature: -20℃ to 60 ℃
※ Shock: Designed to 1.5m drops
