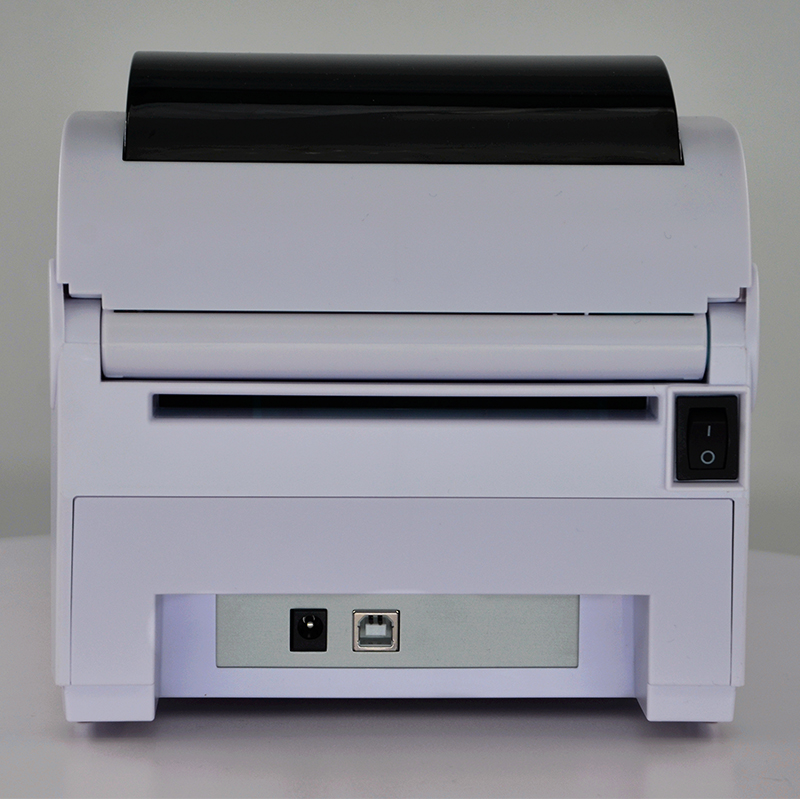

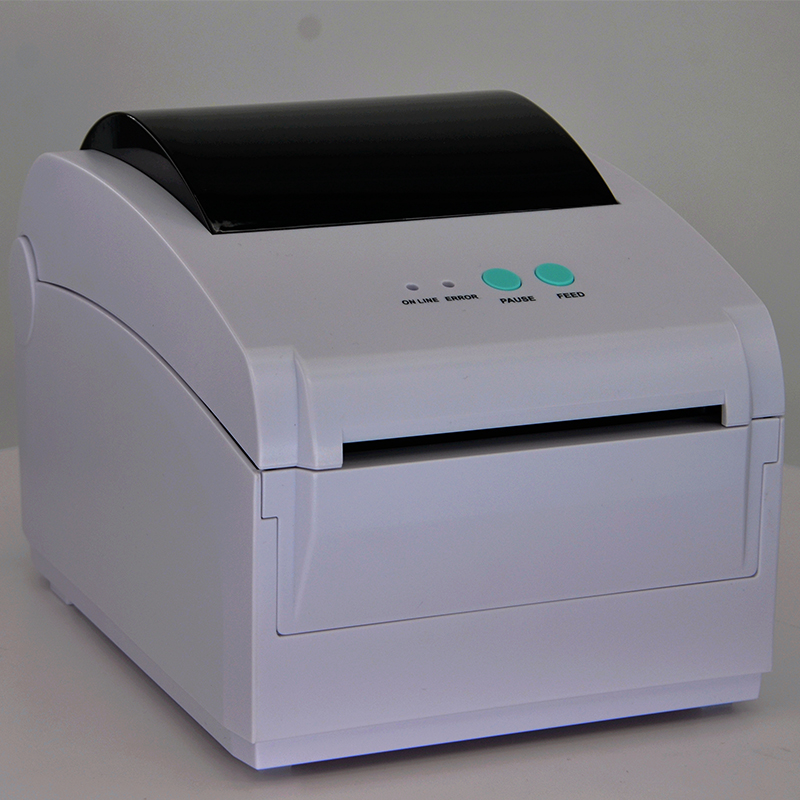

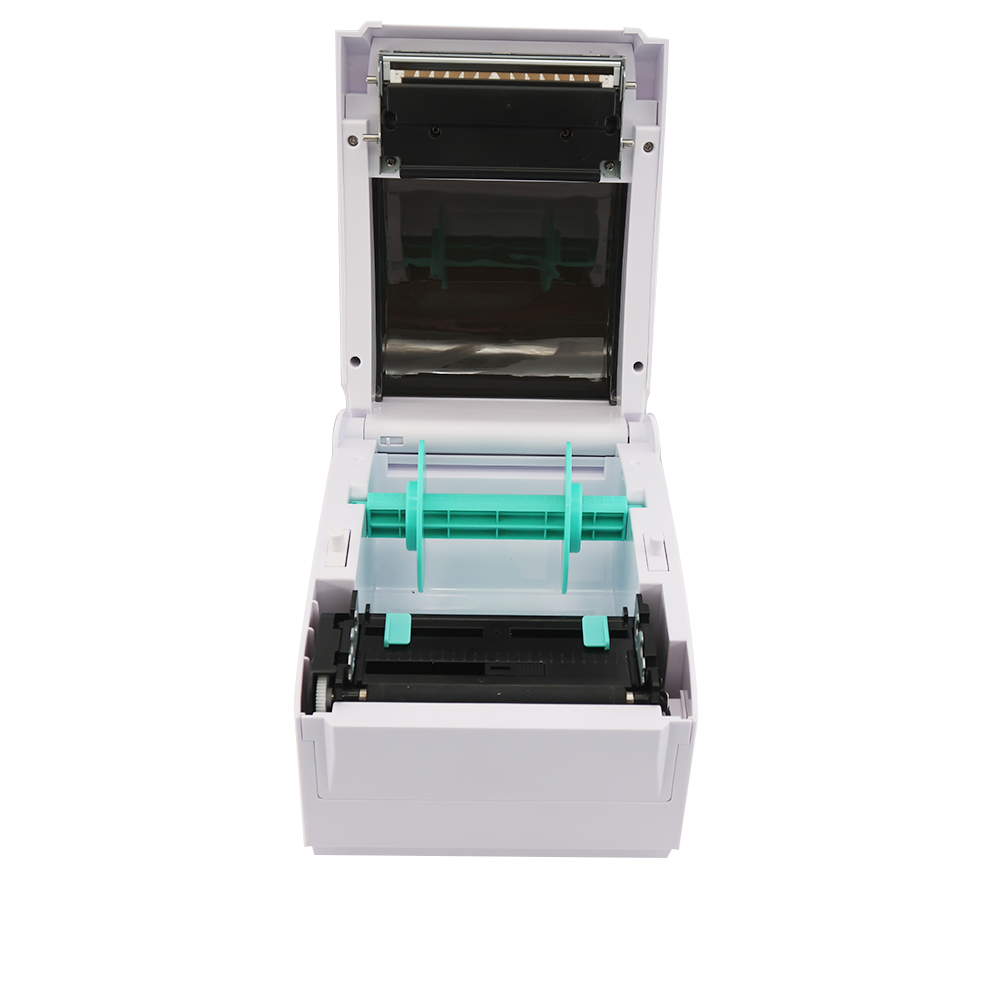

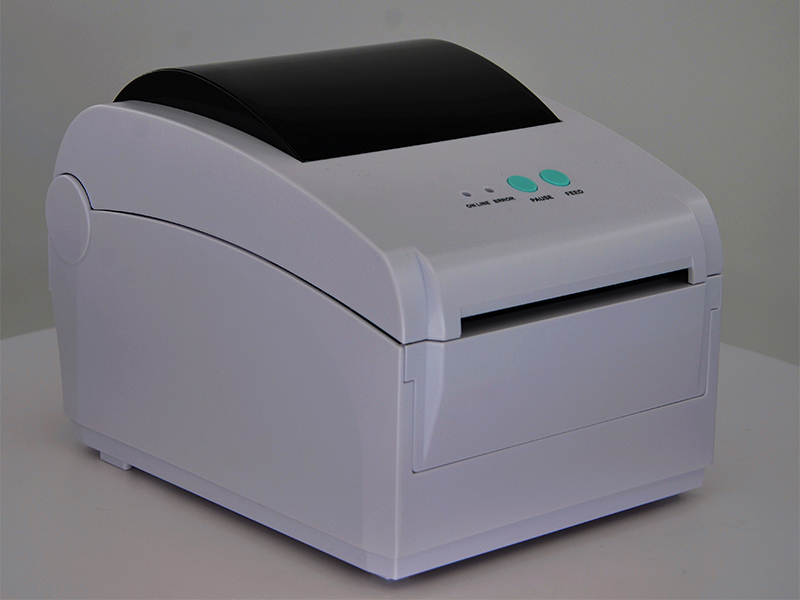

112mm Desktop Direct Thermal Barcode Label Printer GS-2408DC

Source: Kunshan TES Electronic Technology Co., Ltd.2021-06-10

Powerful, high performance, affordable

Key Features:

  1. 203.2 mm (8″) per second print speed for 203 DPI.
  2. 400 MHz 32-bit ARM9 processor with 64 MB SDRAM.
  3. 32 MB Flash memory or 64 MB SDRAM.
  4. Internally scalable true type font engine.
  5. Firmware emulates EPL, ZPL, ZPL II, DPL, TSPL
  6. BarTender Free Windows drivers and label design software( available via download)
  7. Provide Windows printer utility, Windows SDK and Android SDK.
  8. Solution for retail POS, shelf labeling, office application, shipping.

PRINT

  1. PRINTER MODEL: GS-2408DC
  2. Level: Economic
  3. Resolution: 8 dots/mm ( 203 DPI)
  4. Print speed Max. : 203.2 mm ( 8″)/second
  5. Print length Max. 2794mm
  6. Physical dimension: 176mm x 180mm x 240mm ( W x H x D)
  7. Weight: 1.76 kg

GENERAL

  1. CPU: 400MHZ, 32-bits, ARM9
  2. Memory RAM: 64 MB SDRAM
  3. Memory ROM: 32 MB Flash Memory
  4. Interface: USB
  5. Sensors: Head open sensor, Reflective sensor ( moveable ), Transmissive sensor ( moveable )
  6. Power: External universal switching power supply
    Input: AC 100-240V, 2.5A, 50-60 Hz, Output: DC 24V, 2.5A, 60W
  7. User Interface: 1 power switch, 2 buttons ( Feed & Pause), 2 LEDs ( Online, Error)
  8. Interface fonts: 8 alpha-numeric bitmap fonts, True type font engine ( need download scalable font file )
  9. 1D barcode: Code 11, Code 39, Code 93, Code 128 ( subsets A, B, C), UPC-A, UPC-E, UCC-128, Codabar, EAN/JAN-8, EAN/JAN-13, Interleaved 2 of 5, ITF14, MSI Pleassy, PostCode, Telepen
  10. 2D Barcode: QR Code, Micro QR Code, PDF417, Micro PDF417, Grid Matrix, MaxiCode, Aztec Code, Data Matrix
  11. Rotation: Font and barcode support 0,90,180, 270 degree
  12. Printer language: Compatible to EPL, ZPL, ZPL II, DPL, TSPL

MEDIA

  1. Media type: Continuous, die-cut, black mark, fan-fold, notched ( outside wound)
  2. Media width: 15-112mm (0.6″ ~4.4″)
  3. Media thickness: 0.055 ~ 0.254mm ( 2.17 ~ 10 mil)
  4. Media core diameter: 25.4 mm ( 1″)
  5. Media roll capacity: 127mm ( 5″) OD
  6. Media length: 5 ~2794 mm ( 0.2″ ~110″)

Enclosure
ABS plastic

Certification
FCC, CE, CCC, BIS, CB

Environment condition
Operation: 5 ~40℃, 25 ~ 85% non-condensing
Storage: -40 ~ 60℃, 10 ~ 90% non-condensing

Assessories

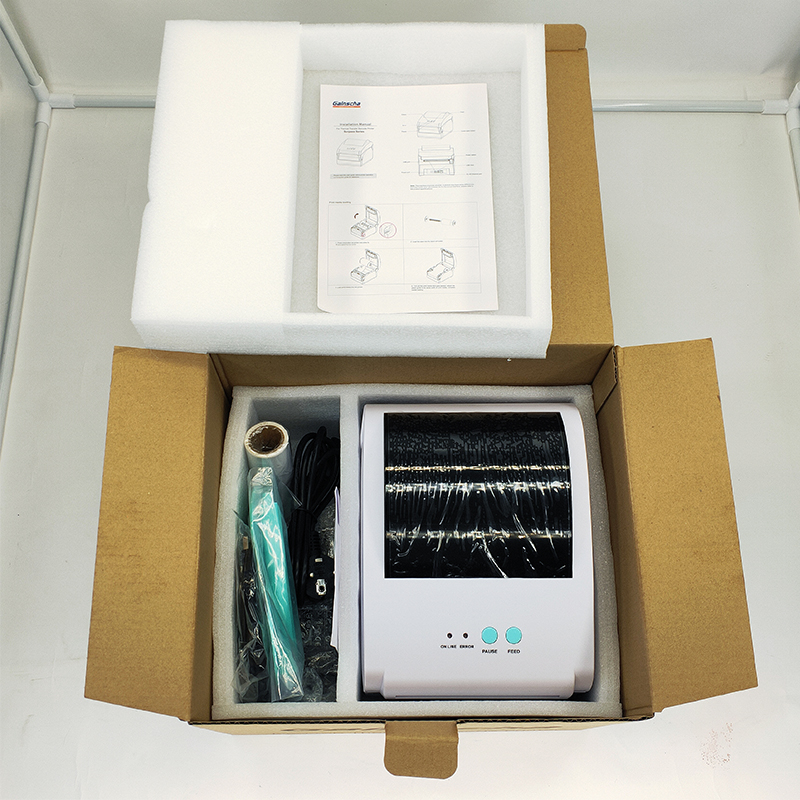

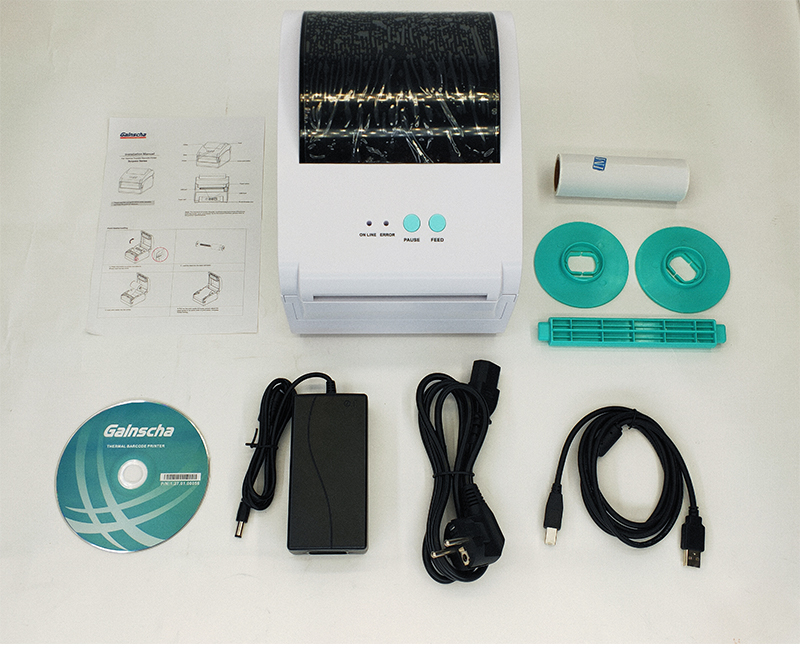

Windows labeling software CD disk/Quick start guide/ USB cable/ Power cord External universal switching power supply

User options
External roll mount
